Planetary 14 Bikes are pleased to announce that we have been appointed as an authorised supplier and service agent for
Wisper Electric Bikes
covering North Northumberland and the Eastern Scottish Borders.
Go to the ‘Electric Bikes’ page for more info…
Bikes are great things but…
…are you tired of crunching the chain and sprockets on your bicycle when changing to a different gear?
…are you sick of having to mess around lifting your bike up and pedalling by hand when you find yourself in the wrong gear before you start off?
…are you finding yourself clicking twice on the left lever and 4 times on the right then hoping it is the gear you want?
There is an answer.
A bike with hub gears will allow you to change gear whilst standing still and the sequential change allows the correct ratio to be found easily.

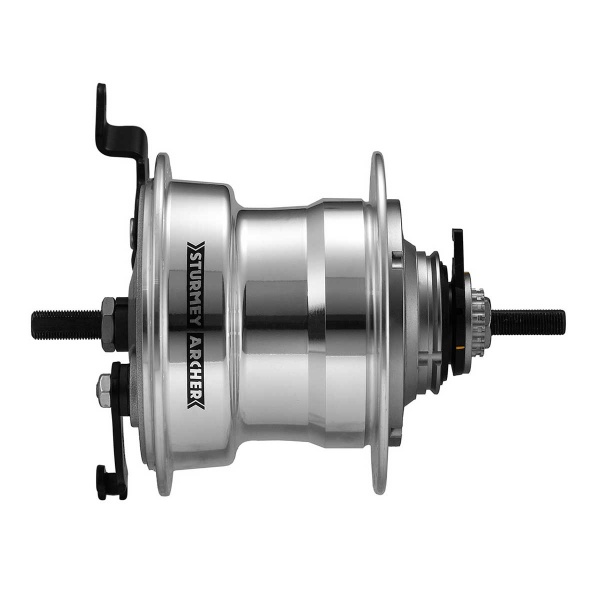

A hub gear is a planetary (also known as an epicyclic) gear system fitted within a shell which forms the hub of the rear wheel of a bicycle. They are available in 2, 3, 4, 5, 7, 8, 12 and 14 speed versions. Oh, not to forget 11 speed. Thanks, Paul 🙂
We at Planetary 14 Bikes, funnily enough, concentrate on the 14 speed versions…
The Rohloff Speedhub 500/14, the issue with the bikes available and how we address it…
Many of the bikes currently available that are fitted with the Rohloff Speedhub 500/14 have been built using frames made specifically for this gear system.
These frames are of excellent quality and come equipped with high end components.
This is why they usually have a high price attached.
For some people, this means they are beyond sensible budget.
To offer the Rohloff experience to a greater audience, we take a good quality but relatively inexpensive ‘off the shelf‘ bicycle, strip it of derailleur gears then install the 14 speed hub gear system.
My name is Norman Gauld. I have worked in the bike trade for over 25 years, mostly within independent shops but also in chain stores with bike departments. I have been engaged in all aspects of work within these environments, especially the assembly, servicing and repair of all types of pedal bicycle including electrically assisted.
I have long had an interest in hub geared bicycles and believe them to be superior to derailleur geared bikes in many ways, especially for those who use their bicycles for utility or touring purposes, or simply for the pleasure of riding a bike. Using the knowledge and experience gained over my time in the trade, my team and I are able to offer a Rohloff geared bicycle for a price which you may find is a surprising amount less than many others are asking.
The assembly is done carefully to a high standard, then the bicycle is taken for a 20 mile test ride. Any adjustment needed to ensure correct operation is made. Only then is the bike available to the customer.
The bikes we assemble are of good quality but with ‘middle of the road’ specification. We don’t use overly expensive, fancy parts. Just good, solid, workable bits.
Except for the Speedhub itself, that is as ‘high end’ as you get…
The other components the bikes are fitted with will function efficiently and reliably provided the bike is used sympathetically for its intended use. All bits are readily available when they eventually wear out.
We tend to put the Speedhub into hybrid bikes as they are quite adaptable and can be used as commuter bikes, tourers or ‘cycle around the countryside for fun’ bikes.
Occasionally, a hardtail Mountain Bike will get a Speedhub fitted though.
Different brands of bike are used in our creations but only those which have good quality frames suitable for Rohloff fitment. Some of the original components fitted to these frames are retained, but there are others that need changing to ensure that the completed bicycle works correctly.
If you would like one of these bikes, here’s what to do…
Check out the ‘Rohloff Bikes’ page to see if anything there is of interest to you.
Get in touch with us via the ‘Contact Us’ page and we’ll arrange to phone you and have a chat about what you want.
If there is a bike ready built that would suit you, tell us and we’ll hold on to it for up to a week to allow you to come and see us and give it a try
If we don’t have a bike that suits and you want us to create one for you, we’ll work out what is right for you then start ordering up any components we don’t have in stock. As long as our suppliers have the stuff we need, we usually manage to have a finished bike ready within 3 weeks, often quicker.
We don’t do mail order or online sales so you’ll need to come and see us to pay and collect your bicycle in person. That way, we are both sure it is 100% correctly assembled and fitted for size. There is a selection of quiet country roads on our doorstep so you may take your new bicycle on a test ride to familiarize yourself with it. Any issues of fit can be addressed immediately upon your return. We can also give you practical advice and demonstrations on how to look after your new acquisition to give it a long and reliable service life.
Does fitting a Rohloff Speedhub make a bike heavier?
Yes it does. However, in most cases, it is less than 1 lb (0.454 kg) difference. Totally insignificant when one considers that putting an adult on the saddle can increase the weight by, in some cases, 225lbs (102 kg)…
Does it have a wide range of gear ratios?
It’s wider than on most other bikes and, quite frankly, it’s as wide as any bicycle gear system needs to be. Have a look at the table at the bottom of the page.
Is the hub reliable?
There is a book available called ‘Rohloff Stories’ that tells of people doing in excess of 100,000 km with no or little hassle. Change the oil every 5,000 km and change the internal gear cable every once in a while…
Will a Speedhub fit any type of frame?
No. There are certain frame dimensions and features that are required for a Speedhub to fit and function correctly. That is where my hard earned specialist knowledge comes in…
Why do the pictures show a derailleur fitted?
It’s not a derailleur. It’s a chain tensioner.
Some bicycles such as fixed wheel bikes, single speed bikes and hub gear bikes are fitted with one sprocket at the front and one at the back. The frames of these bikes are usually fitted with either track ends, horizontal dropouts, sliding dropouts or eccentric bottom bracket shells. All of these allow correct tensioning of the chain and work very well as long as the user or service person knows what they are doing.
A chain that is too slack may easily jump off the sprockets causing damage to the bicycle and possible injury to the rider. A chain that is too tight will cause excessive wear on itself and the sprockets due to high friction when pedalling and more importantly, will overload the bearings in the bottom bracket or the hub itself. Overloading the bearings in a hub gear will lead to a failure which may be quite expensive to rectify.
The frames we tend to use have vertical dropouts and a derailleur hanger. As this set up has no facility for adjusting the chain, it is necessary to fit a chain tensioner, which has the happy side effect of preventing the above mentioned problems.
In my time in the trade, I have come across a few bikes with destroyed hub bearings due to incorrect initial set up and/or poor servicing by persons not familiar with hub gears.
Will you supply me with a Rohloff rear wheel only?
No. There are far too many variables involved. If I were to build and supply you with just a wheel, I could never be sure if it has the correct Speedhub version or indeed, if it will fit the frame you want it for. The only exception to this is if you were to get the frame to me and I decide it is suitable.
